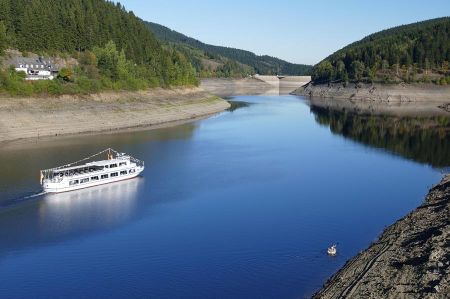

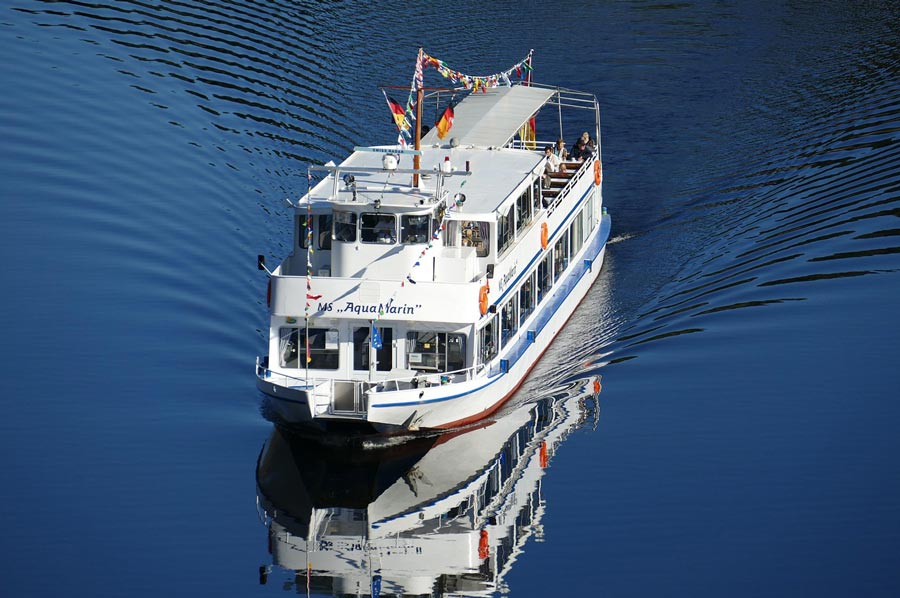

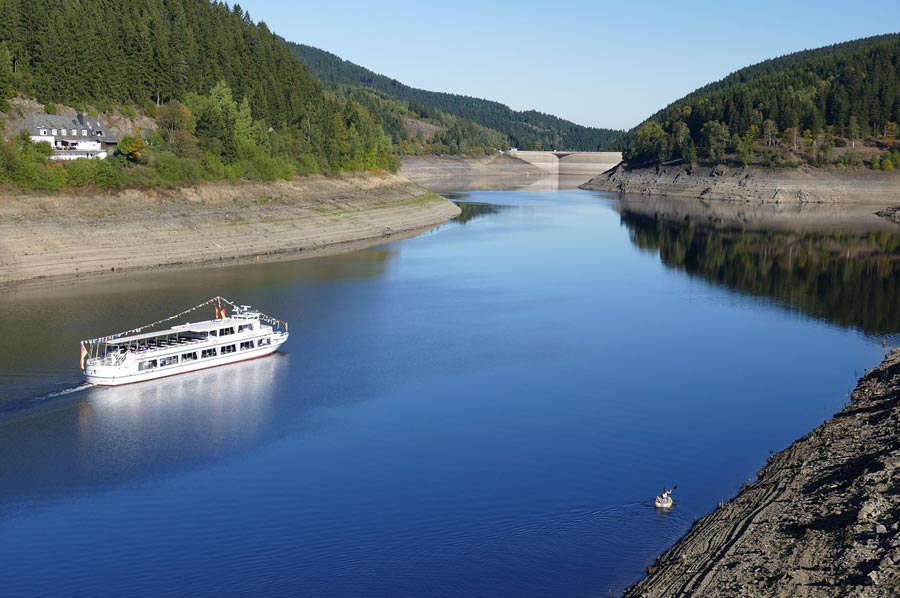

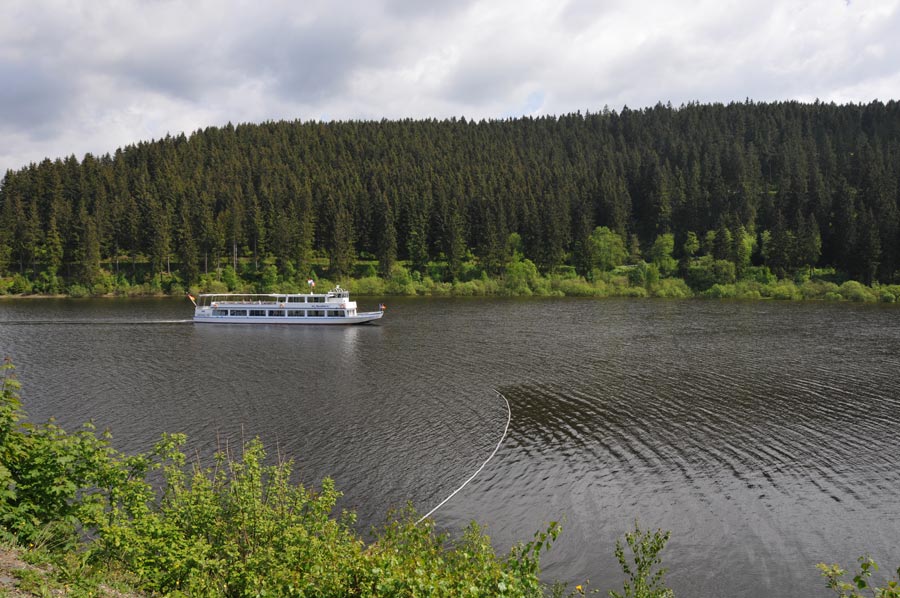

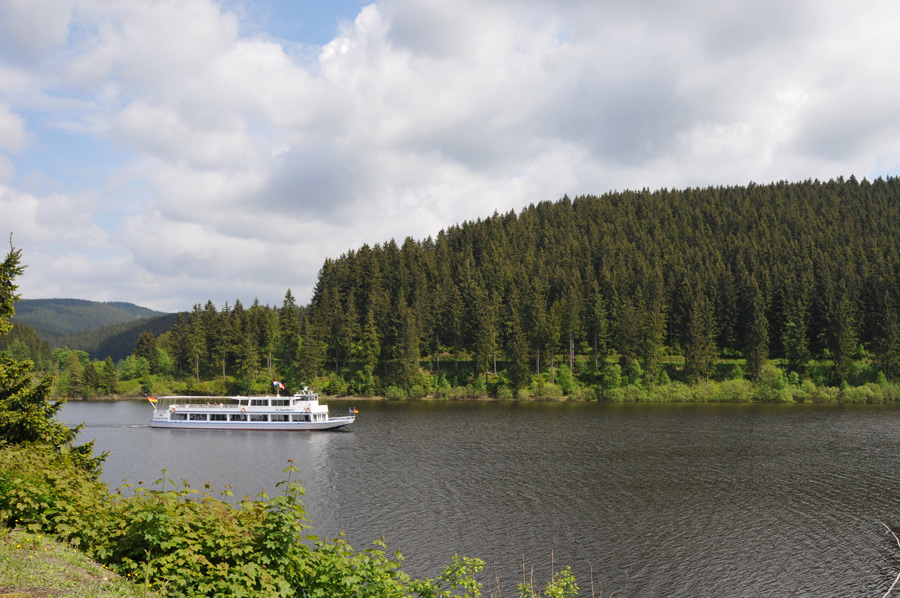

How well can I remember my childhood, when there was a lot of life and hustle and bustle at and on the Okertalsperre, the water level so high that you could “board” the big round trip on the MS Aquamarin at many points along the lake shore, the at that time it took almost 1.5 hours and could be started from any landing stage.

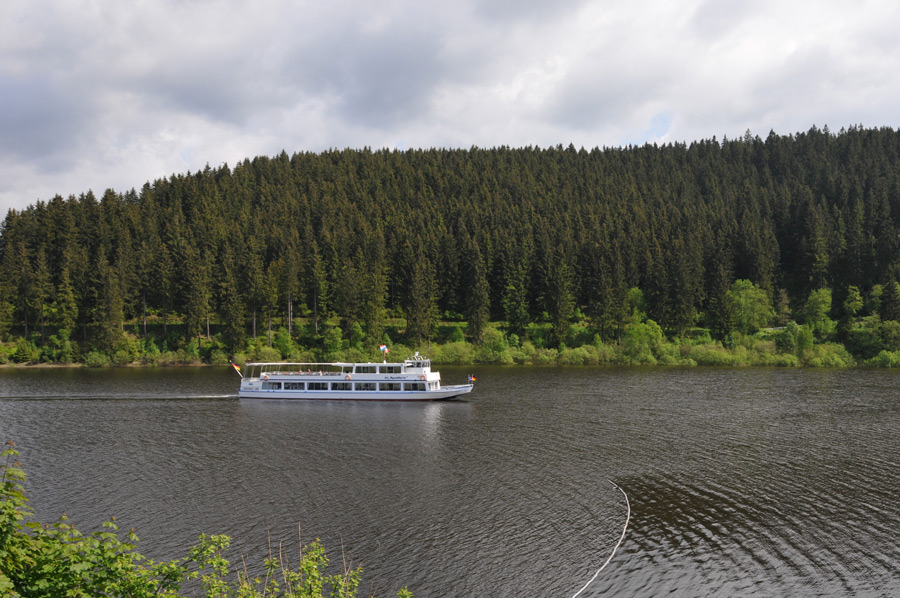

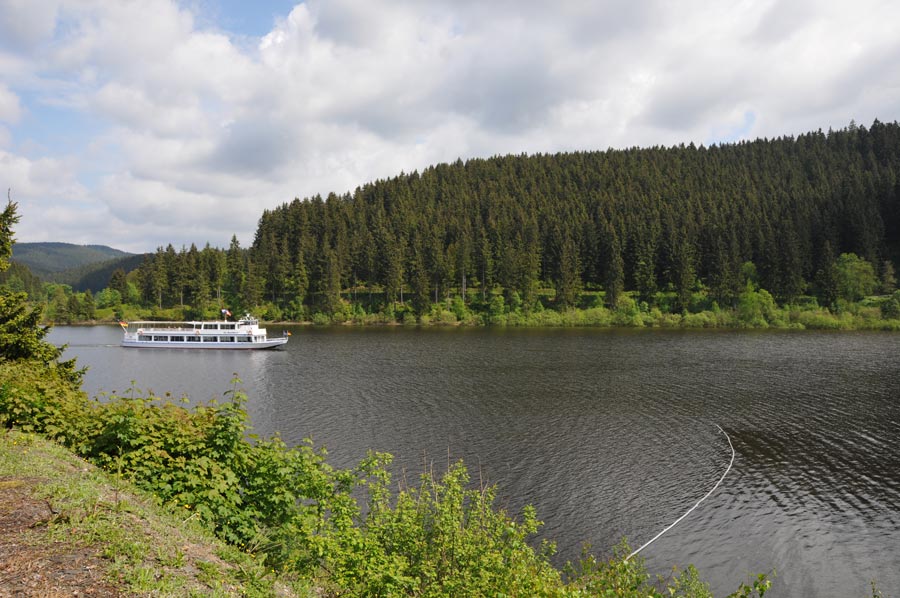

How sad today, however, when the ship lies firmly moored almost hidden in one of the side arms. It is shocking when you then add the immense dying of the coniferous forests in the Harz Mountains, which does not exactly promote the tourism income of the communities, which is so important for the region.

By bike around the Oker reservoir

okerstasee 1But looking away and ignoring doesn't help anyone, quite the opposite, because right now tourism needs support.

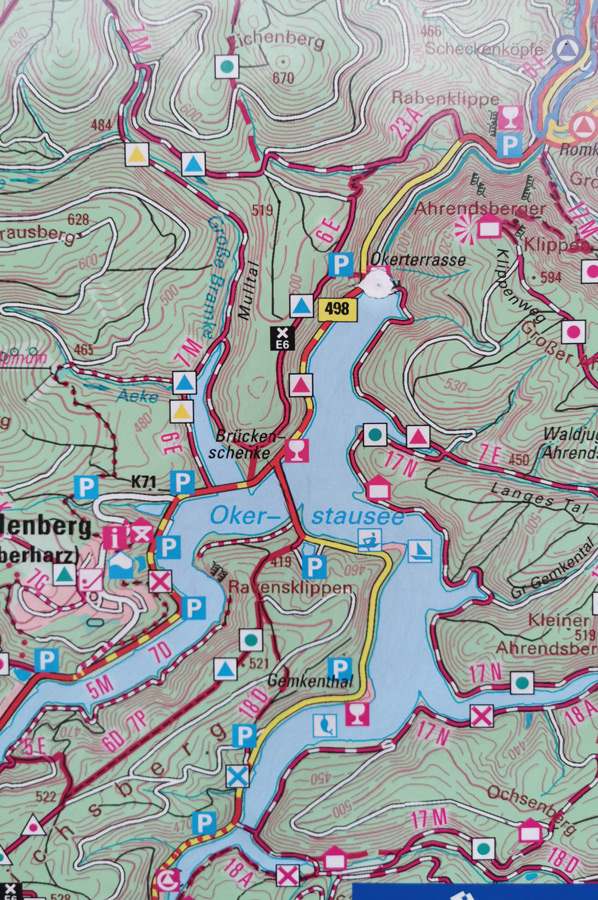

Our plan for today: Coming from Clausthal-Zellerfeld or Altenau, circle the Okerstausee, crossing the main dam wall, because the Okerstausee can be completely circumnavigated both on foot and with non-motorized vehicles on mostly asphalt or gravel roads.

Between the pre-dam and the main dam there is an almost entirely paved road, which is often used by inline skaters and roller skiers; only the path between the pre-dam and Altenau is not paved.

If this tour is not enough for you, you can also include the Romkerhall waterfall in your daily program, although hardly any water flows here either.

Research and construction of the Okertalsperre

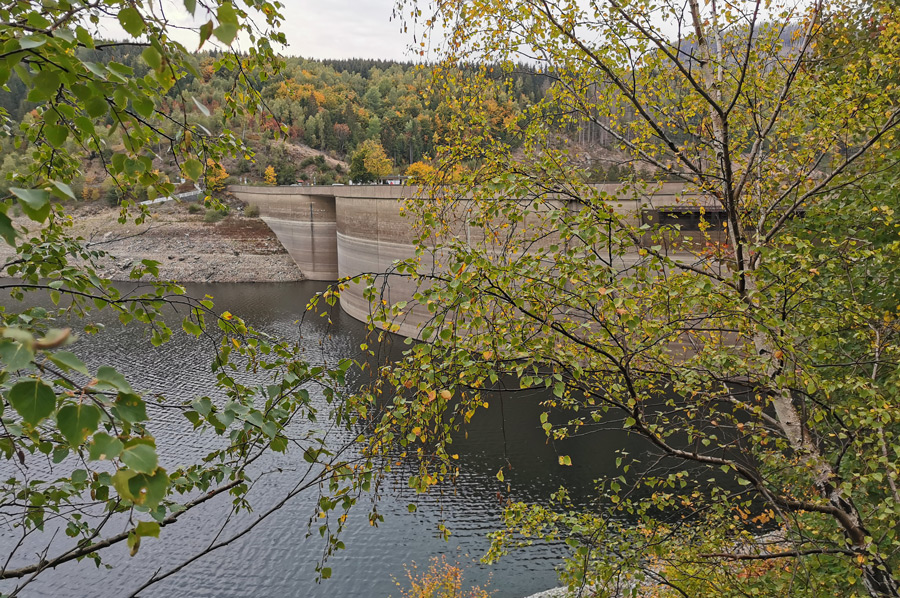

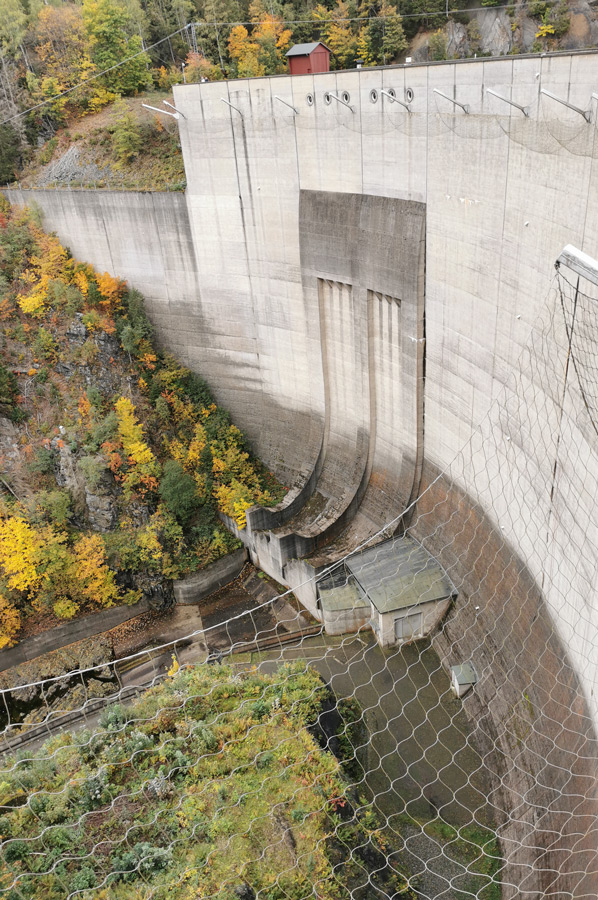

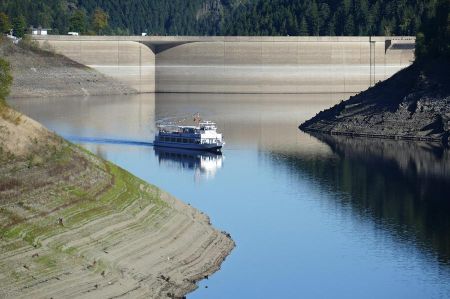

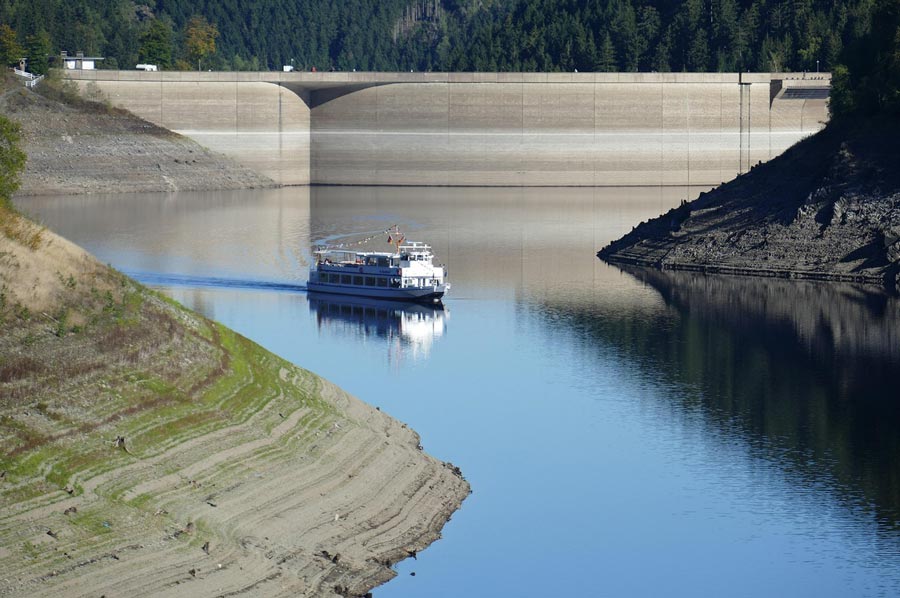

okerstausee 2The Oker reservoir is embedded deep in the wooded low mountain range landscape. Since 1956, the course of the large Oker has been dammed to form an artificial body of water. Fed by the various headwaters of the Upper Harz Mountains, its banks reach far into the adjacent valleys. In the eastern area of ​​the reservoir, a hiking route leads into the Long Valley, whose stream also drains into the reservoir. On the way to the Long Valley, today as I said on the bike, we take a look back at the 67 meter high arch gravity dam.

The Okertalsperre is the second largest dam in the Harz Mountains after the Rappodetalsperre and the largest in Lower Saxony. The construction of the dam was particularly important for flood protection; so important that in 1954 the approximately 300 residents of Unterschulenberg and Mittelschulenberg were resettled. What was the decisive factor for the specific location of the dam in the Okertal?

Pure pressure loading saves the reinforcement

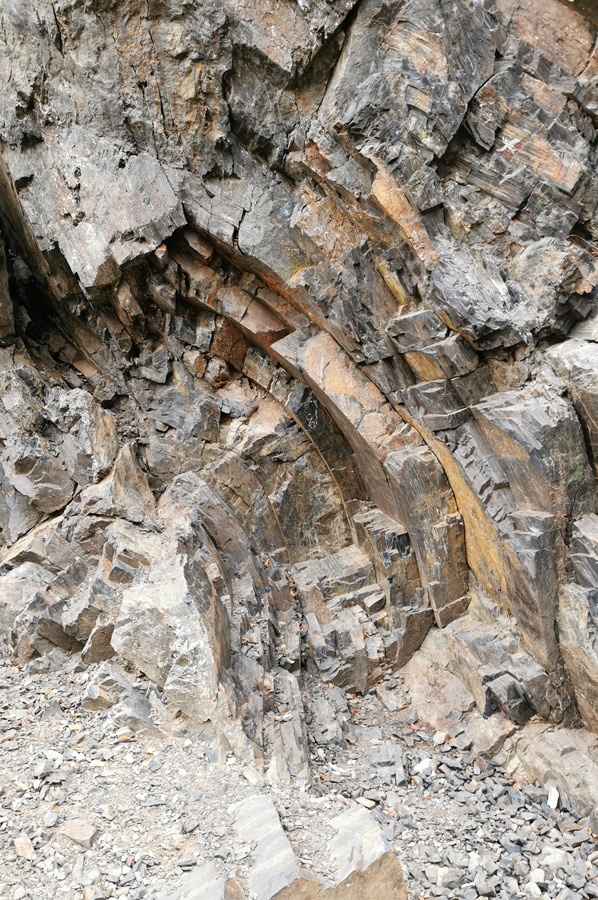

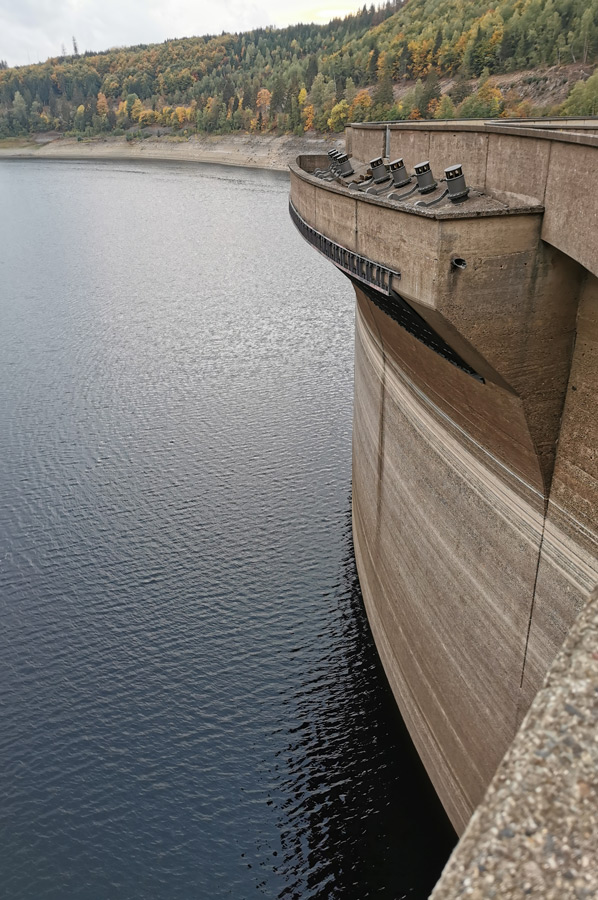

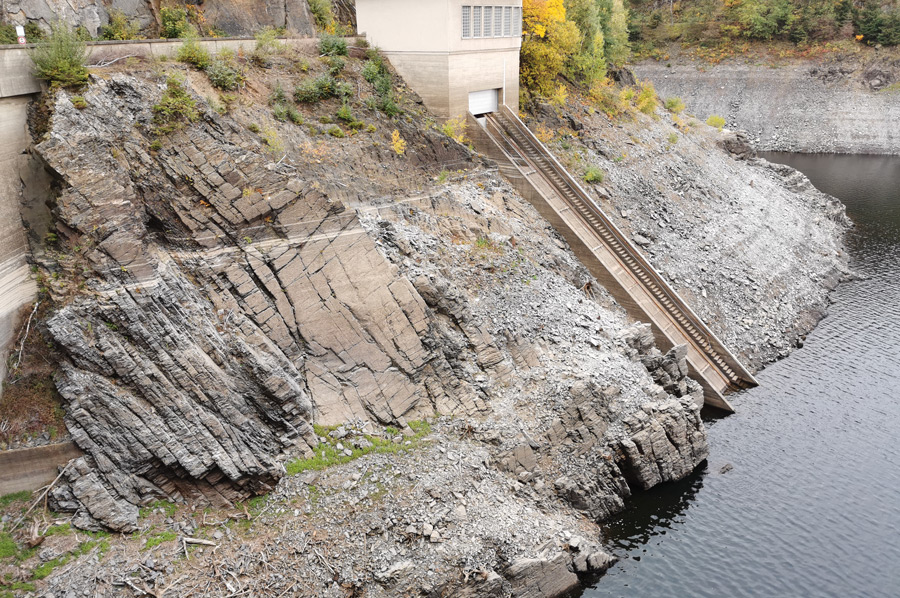

okerstausee 3During the Lower Carboniferous geological period, 360-335 million years ago, sediment avalanched from the continental slope to the seafloor. These deposits are still clearly recognizable today along the Oker reservoir as heavily folded greywacke on clay slate. The heat from the nearby Okerpluton, which formed the granite on both sides of the valley below today's dam wall around 990 million years ago, had transformed the older slate and greywacke underground into very robust horn rocks. In the resulting, weather-resistant rock, the valley incision is narrower than in the more easily weathered granite of the Oker valley below. The hardened rock proved ideal for building an arch dam. The dam wall rests laterally on the rock, which means that the pressure on it is diverted laterally. However, the less stable greywacke could not withstand the forces at work. Therefore, a gravity wall forms the upper part of the dam. Due to its own weight, it defies the forces generated by the water pressure. Cracks in the rock were sealed by grouting cement. Compared to a pure gravity dam, the decision to build an arch gravity dam resulted in a concrete saving of around 60%.

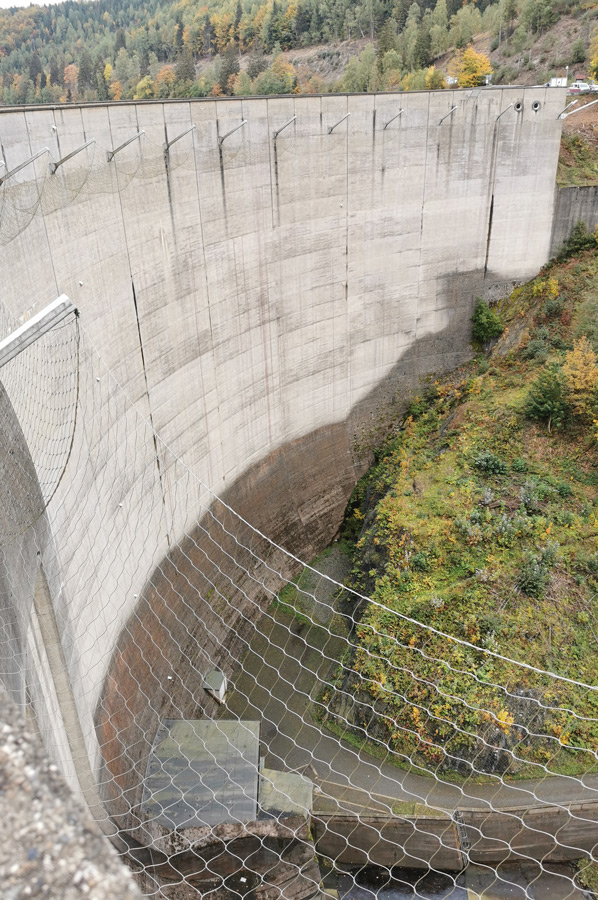

okerstausee 4The dam wall only has to absorb compressive forces and can therefore do without reinforcement. In order to minimize heat development during the setting of the concrete, a coarse vibrated concrete was used. For this purpose, up to 40 cm large diabase stones were vibrated into the relatively normal concrete. This reduced the proportion of cement. Since diabase has a relatively high density of up to 3.0 tons per cubic meter, its proportion also increases the weight of the concrete, which gives the wall additional stability.

The construction of the Okertalsperre was tackled by the Harzwasserwerke between 1938 and 1942. For this purpose, the valley roads were initially relocated to the western and northern banks and the two road bridges "Weißwasserbrücke" and "Bramkebrücke" were built. Soviet prisoners of war were also used, whose graves are in the Altenau cemetery. Construction was interrupted in 1942 because of the war and the need to set different priorities. The dam itself was built between 1952 and 1956. Further construction also became urgent after flooding occurred in the snowy winter of 1946/47, especially in Wolfenbüttel and Braunschweig. During construction, the Unterschulenberg forest workers' settlement had to be abandoned; it was rebuilt to the west of the reservoir on the Wiesenberg.

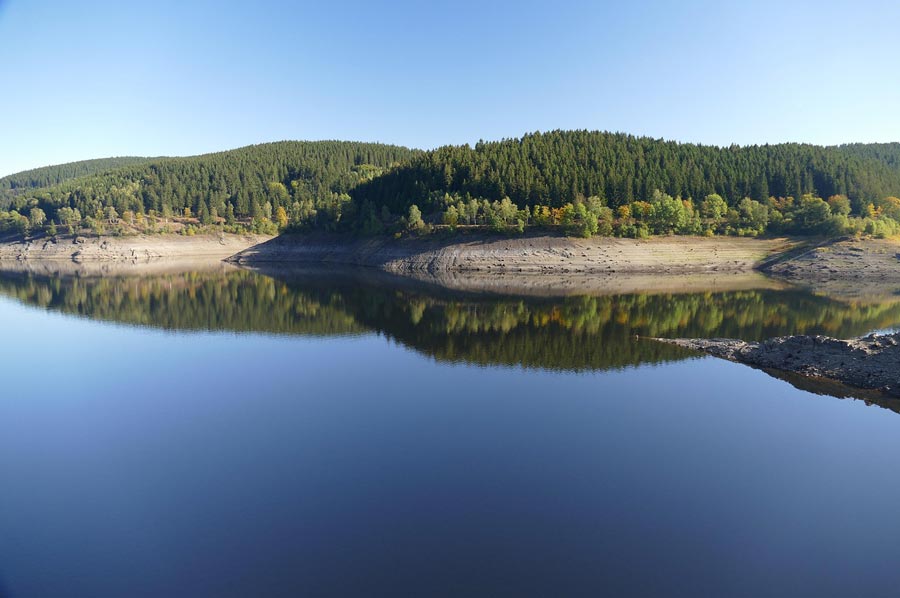

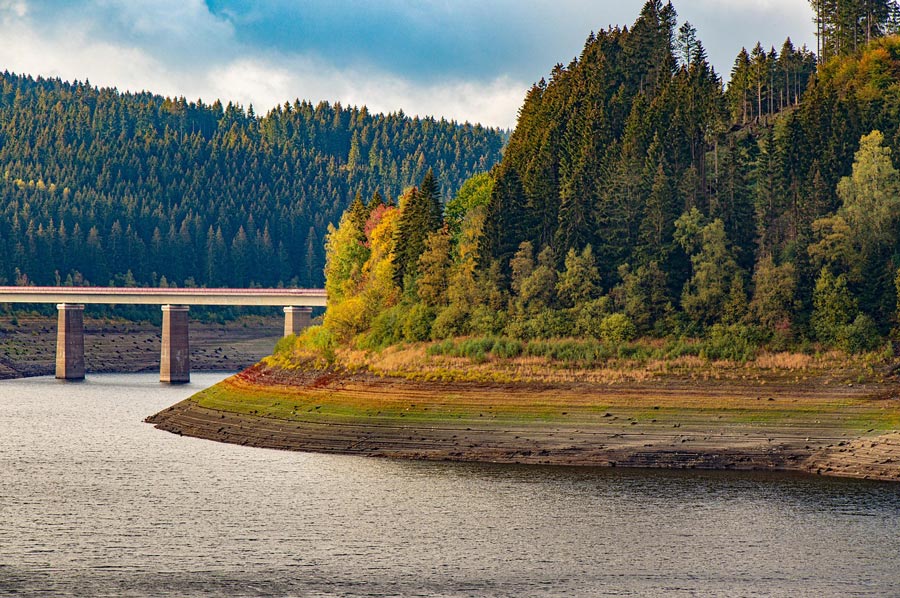

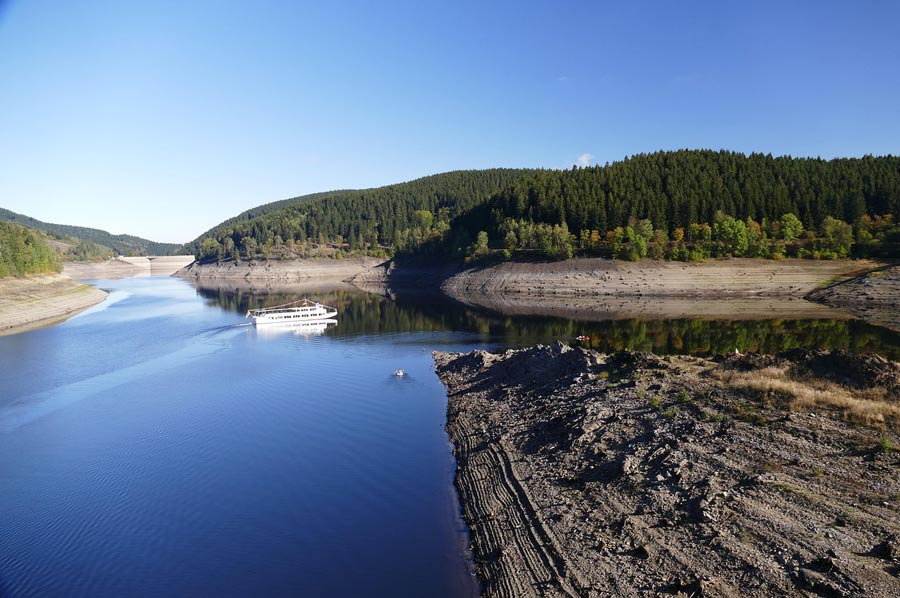

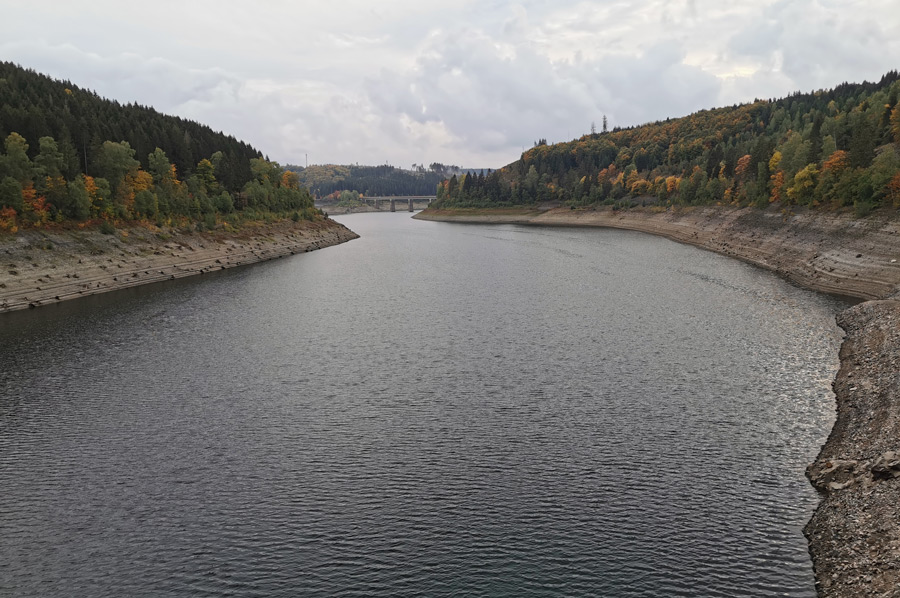

okerstausee 5In years with little rain, the water level of the dam can drop so much that the remains of individual foundation walls and the old valley road with its bridges become visible again.

The dam is still used today to generate electricity, increase low water levels and protect against flooding; indirectly, it is also used to obtain drinking water. The average annual discharge is 75 million m³. The water from the reservoir drives the turbine of the Romkerhalle hydroelectric power station.
